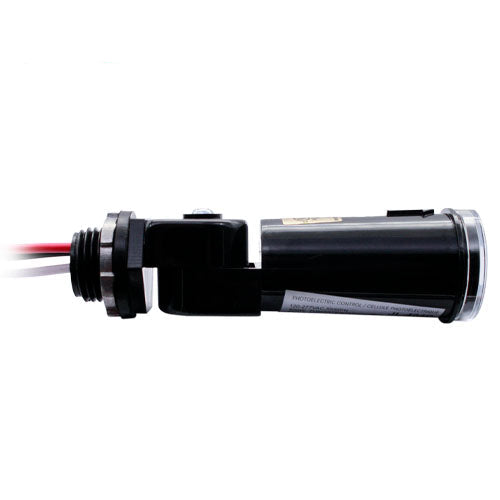

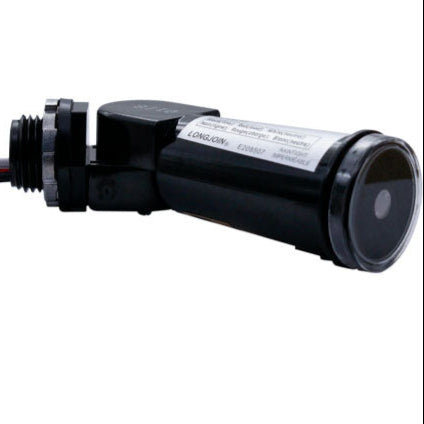

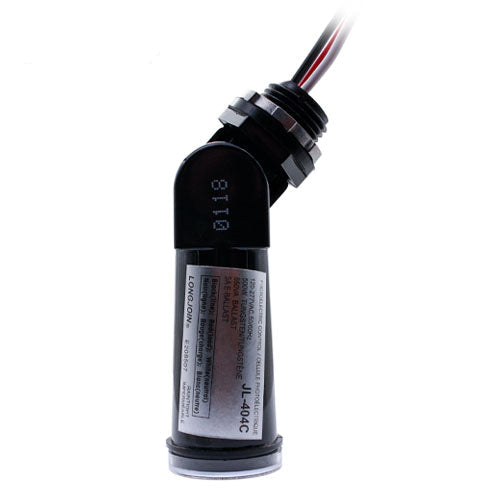

JL-404C Wide Voltage Photocell Switch | Dusk to Dawn Light Sensor | Outdoor Use
JL-404C Wide Voltage Photocell Switch | Dusk to Dawn Light Sensor | Outdoor Use
JL-404C Wide Voltage Photocell Switch | Dusk to Dawn Light Sensor | Outdoor Use
JL-404C Wide Voltage Photocell Switch | Dusk to Dawn Light Sensor | Outdoor Use

Wide Voltage Photocell Switch | Dusk to Dawn Light Sensor | Outdoor Use

$19.99
$19.99
SPECIFICATION SHEET
Please hurry! Only 20 left in stock
Subtotal: $19.99
10 customers are viewing this product

Fast and convenient door-to-door delivery

Free standard shipping on orders over $500

14 days hassle free return warranty

Learn More.
JL-404C Wide Voltage Photocell Switch | Dusk to Dawn Light Sensor | Outdoor Use

Wide Voltage Photocell Switch | Dusk to Dawn Light Sensor | Outdoor Use

$19.99

Wide Voltage Photocell Switch | Dusk to Dawn Light Sensor | Outdoor Use

$19.99

Features:

  • Tailored Illumination: Achieve the optimal angle with the unique turret style design.
  • Versatile Mounting Options: Mount directly with fixtures or externally on conduits.
  • Robust and Reliable: IP65 rated for resistance against dust and water jets.
  • Cutting-Edge Sensor: Precise light sensing with the IR-Filtered Phototransistor.
  • Safety First: UL Listed for consistent and secure operation.
  • Efficient Power Consumption: Energy-saving with just 0.4W consumption.
  • Impressive Loading Ratings: Handles up to 500W Tungsten, 850VA Ballast, and 5A E-Ballast.
  • Extended Lead Lengths: 180mm leads for flexible wiring during installation.
Product Attributes
Model No.JL-404CVoltage120-277VAC
Applicable Volt RangeNominal +/- 10%Rated Frequency50/60Hz
Rated Loading500W Tungsten/850VA Ballast, 5A E-Ballast @ 120VACPower Consumption0.4W
Operate Level10-20 Lx On, 30-80 Lx OffAmbient Temperature-30C – +70C
IP GradeIP65CertifiedUL Listed
Leads Length180mmFall ModeFall-On
Sensor TypeIR-Filtered PhototransistorTime Delay3-10 Seconds
Typical Surge Protection235 Joules/5000Amps
